150lbs Stainless Steel 304 Socket Weld Flange

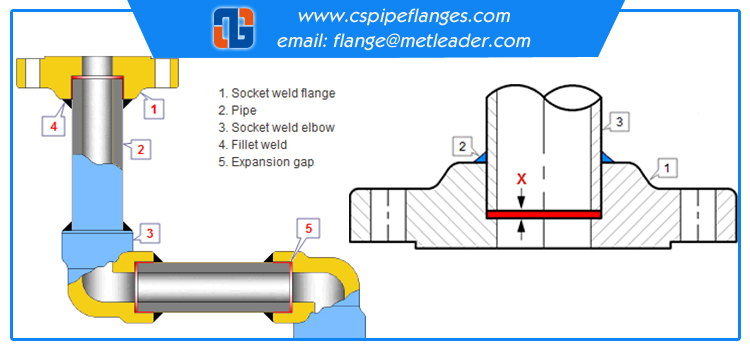

Socket Weld Flanges were initially developed for use on small-size high pressure piping. The connection is made as the pipe sits inside of the cupped inlet or “Socket” of the flange. A fillet weld at the outside of the flange binds the two pieces and ensures a seal.
150lbs Stainless Steel 304 Socket Weld Flange base information:
Model NO.: 1/2′–72′
Type: Welding Flange
Structure: Lateral
Sealing Surface: FM
Surface: Oil or Painted
Brand: Metleader
Origin Place: Cangzhou City ,Hebei China(Mainland)
Transport Package: Pallet, Wooden Case
Origin: Cangzhou, China
Standard: ANSI, DIN, GB, JIS
Material: Stainless Steel
Connection: Welding
Manufacturing Way: Forging
Certificate: ISO,API,BV
Pressure: Any Pressure
Trademark: ST
Specification: API, ISO
HS Code: 730793
Our flanges are produced according to standard strictly.
Our factory is specializes in manufacturing carbon steel seamless pipes and pipe fittings
And forged flanges. Welcome to visit and cooperation.
- Standard: ANSI, DIN, JIS, BS
- Size: 1/2″- 72″
- Pressure: A. Class150/300/600/900/1500 b. JIS 5K/10K/16K20K c. PN6/10/16/25/40
- Type: Flange, forged flange, plate flange
- Material: ASTM A105, Rst37.2, C22.8, carbon steel, Alloy steel, stainless steel
- Surface: Black painted, oil, galvanizing
- Special design available
